Electrodynamics of topological insulators: electromagnetic response and quantization
The electromagnetic response of a 3D topological insulator is described by two terms. The first is the usual Maxwell Lagrangian \(\mathscr {L} _{M} = \tfrac{1}{2} \left( \varepsilon \varepsilon _{0} \mathbf{{E}} ^{2} – \mathbf{{B}}^{2} / \mu \mu _{0} \right) \) from which Maxwell equations can be derived, and the second is the axionic \(\theta \)-term (in SI units) \(\mathscr {L} _{\theta } = ( \alpha / \pi Z _{0} ) \theta \, \mathbf{{E}} \cdot \mathbf{{B}}\), where \(\alpha \simeq 1 / 137\) is the fine structure constant, \(Z _{0} = \sqrt{\mu _{0} / \varepsilon _{0}}\) is the impedance of free space and \(\theta \) is the topological magnetoelectric polarizability (TMEP), whose origin is quantum-mechanical. In the presence of TR symmetry, \(\theta \) takes a quantized value \(\pi \) (mod \(2 \pi \)) for TIs and \(\theta = 0\) in trivial insulators. A number of magnetoelectric effects have been predicted on the basis of this theory30,31,32,33,34,35,36,37,38. However, it has been experimentally verified only through the measurement of Kerr and Faraday angles at the surface of a strained HgTe 3D TI39.
In the problem at hand, with the aim of quantizing the electromagnetic field modes, we begin with the classical electromagnetic description of a spherical 3D TI embedded in a medium with dielectric constant \(\varepsilon _{2}\) and subjected to an externally applied monochromatic magnetic field. We consider the TI characterized by a dielectric function \(\varepsilon _{1}(\omega )\), the TMEP \(\theta \), and the magnetic permeability \(\mu \simeq 1\). Assuming that the wavelength of the applied field is large as compared with the TI size, we can work in the time harmonic approximation, for which the electromagnetic fields can be written as \(\mathbf{{E}} (\mathbf{{r}} , t) = \text{ Re } \big \{\ \!\! \mathbf{{E}} (\mathbf{{r}}) e ^{- i \omega t} \big \}\ \!\!\) and \(\mathbf{{B}} (\mathbf{{r}} , t) \! = \! \text{ Re } \big \{\ \!\! \mathbf{{B}} (\mathbf{{r}}) e ^{- i \omega t} \big \}\ \!\!\), where \(\mathbf{{E}} (\mathbf{{r}})\) and \(\mathbf{{B}} (\mathbf{{r}})\) are the fields associated with the static solutions to the equations of axion electrodynamics. Due to the TME effect, the magnetic field polarises the TI, which can be described by the electric field
$$\begin{aligned} \mathbf{{E}} (\mathbf{{r}} , \omega ) = – \frac{\tilde{\alpha }c}{2 \varepsilon _{2} + \varepsilon _{1}(\omega ) + (2/3) \tilde{\alpha } ^{2}} \,\sum _{i} B_{0i} \, \mathbf{{G}} _{i} (\mathbf{{r}}) , \quad \mathbf{{G}} _{i} (\mathbf{{r}}) = \left\{ \begin{array}{c} \hat{\mathbf{{e}}} _{i} \\ – \frac{R ^{3}}{r ^{3}} \left[ 3\,(\hat{\mathbf{{e}}} _{r} \cdot \hat{\mathbf{{e}}} _{i})\, \hat{\mathbf{{e}}} _{r} – \hat{\mathbf{{e}}} _{i} \right] \end{array} \right. \begin{array}{c} r<R \\ r>R \end{array} , \end{aligned}$$
(1)
where \(\tilde{\alpha } = \alpha \cdot (\theta / \pi ) = (2l+1)/137\) with \(l=0,1,2,\ldots \), c is the speed of light and \(B_{0i}\) is the i-th component of the external magnetic field. We observe that the electric field inside the TI is uniform as that of a uniformly polarised sphere, whilst the electric field outside is dipolar. Certainly, this electric field is a direct manifestation of the nontrivial topological order of the TI. On the other hand, the magnetic field can be expressed as the externally applied field \(\mathbf{{B}} _{0}\) plus a dipolar field which is proportional to the electric field (1), i.e. \(\mathbf{{B}} (\mathbf{{r}} , \omega ) = – (\tilde{\alpha } / 3c) \xi (r) \, \mathbf{{E}} (\mathbf{{r}} , \omega ) \), where \(\xi (r) = 1\) for \(r>R\) and \(\xi (r) = -2\) for \(r<R\). We note that these fields satisfy the orthogonality \(\int \mathbf{{F}} _{i} \cdot \mathbf{{F}} _{j} \, d ^{3} \mathbf{{r}} = 0\) for \(i \ne j\), where \(\mathbf{{F}}\) is either \(\mathbf{{E}}\) or \(\mathbf{{B}}\).
The time-dependent fields can be obtained by Fourier transforming the above results. To do this, we require a model for the dielectric function \(\varepsilon _{1}(\omega )\). Because of the low concentration of free carriers in insulators, the dielectric function \(\varepsilon _{1}(\omega )\) can be well modeled by \(\varepsilon _{1}(\omega ) – 1 = \omega _{e} ^{2} [ \omega _{R} ^{2} – \omega (\omega + i \gamma _{0}) ] ^{-1}\), where \(\omega _{R}\) and \(\omega _{e}\) are the resonant and natural frequencies, respectively. The damping parameter \(\gamma _{0}\) (for which \(\gamma _{0} \ll \omega _{R}\)) accounts for energy dissipation due to Ohmic losses in the TI. When \(\gamma _{0} \ll \omega \) the electric field (1) follows a Lorentzian spectrum:
$$\begin{aligned} \mathbf{{E}} (\mathbf{{r}} , \omega ) = – \eta \frac{\omega _{0} ^{2}/2 \Omega }{\omega – \Omega + i \gamma _{0}/2} \sum _{i} c B_{0i} \, \mathbf{{G}} _{i} (\mathbf{{r}}) , \quad \eta = \frac{\tilde{\alpha }}{2\varepsilon _{2} + 1 + (2/3) \tilde{\alpha } ^{2}} , \end{aligned}$$
(2)
where \(\omega _{0} = \omega _{e} \sqrt{\eta / \tilde{\alpha }} \) and \(\Omega ^{2} = \omega _{R} ^{2} + \omega _{0} ^{2}\). The Lorentzian approximation to the TI spectral response is appropriate when it interacts with a dipole whose resonant frequency is close to plasmon resonance40, which is the regime of interest for this article.
Quantum optical model for TI-dipole interaction
The electromagnetic fields from the previous section are not localised in space. The electric field arises as a TME response of the TI to the external magnetic field carrying a monochromatic component \(\textbf{B}_0(\textbf{r},t) = \text{ Re } \big \{ \textbf{B}_0 e ^{- i \omega t} \big \}\), comprising a wave that extends infinitely in space. As we are concerned with a quantum mechanical description of the TI’s response, we need to quantise the arising EM fields due to the TME polarisation of the TI. However, for quantizing the field modes we require localised solutions. These can be obtained by exciting the TI with an impulse function, since after the impulse has ended, only the localised modes will remain. If the TI is excited by an impulse input of the form \(B _{0} (t) = B _{0} \delta (t)\) the time-domain electric field of the TI is
$$\begin{aligned} \mathbf{{E}} (\mathbf{{r}} , t ) = \sum _{i=x,y,z} \Lambda _{i} \mathbf{{G}} _{i} (\mathbf{{r}}) \, \sin (\Omega t) \, e ^{- \gamma _{0} t / 2 } , \quad \Lambda _{i} = -\eta \, (\omega _{0} ^{2} / 2 \Omega )\, B _{0i}\,c . \end{aligned}$$
(3)
By the way, the same proportionality between the electric and magnetic fields still holds in the time domain. To model the TI-dipole interaction quantum mechanically we will consider a full open system consisting of a closed sub-system formed by the TI-QD hybrid (plus their mutual interaction) interacting with an environment. We will describe each component below, but at this point we argue that the Ohmic dissipation is lost from the closed sub-system into the environment/bath creating phonon excitations from the bath’s vacuum. Thus, for the purpose of quantizing the EM fields, it proves useful to omit the damping parameter \(\gamma _{0}\) in Eq. (3) which accounts for energy dissipation due to Ohmic losses present in matter, provided we include it afterwards as described above. In this context, dampings can be treated using Lindblad’s master equation formalism and we will do so in the next section.
Having omitted \(\gamma _{0}\) in Eq. (3), the confined EM field modes on the TI’s surface will be steady-state sinusoidal functions. Noting that from Eq. (3) the Cartesian components of the confined surface fields modes are orthogonal, we may quantize each component individually. The quantization programme is along the lines of canonical quantization, with, however, a slight modification. We consider initially the energy of the i-th mode of the EM fields in a dispersive media: \(U _{i} = \frac{\varepsilon _{0}}{2} \int \left[ \textbf{E} ^{2} _{i}\, \frac{d( \omega \varepsilon )}{d \omega } + \frac{1}{\mu }\,\textbf{B} ^{2} _{i} \right] \, d ^{3} \textbf{r}\)41, and from here read a classical Hamiltonian in which the electric and magnetic fields play the role of canonically conjugated variables that, after promotion to quantum operators with defined commutation relations, yields the Hamiltonian of a quantum mechanical harmonic oscillator. However, such procedure is untenable. The magnetic field is reduced by a factor of \(\alpha ^{2} \sim 10^{-5}\) in comparison with the electric field, thus the energy of the i-th mode is given by
$$\begin{aligned}U _{i}&= \frac{\varepsilon _{0}}{2} \Lambda _{i} ^{2} \sin ^{2} ( \Omega \,t) \int \vert \textbf{G} _{i} (\textbf{r}) \vert ^{2} \, \frac{d\text{ Re }( \omega \varepsilon )}{d \omega } \bigg | _{\omega = \Omega } \, d ^{3} \textbf{r} \, \equiv \,\hbar \Omega A _{i} ^{2} \sin ^{2} ( \Omega \,t), \end{aligned}$$
(4)
where we have introduced the normalized amplitude \(A _{i} = \Lambda _{i} / N\), with \(N^{-2} = \frac{\varepsilon _{0}}{2 \hbar \Omega } \int \, d ^{3} \textbf{r}\, \vert \textbf{G} _{i} (\textbf{r}) \vert ^{2} \, \frac{d{{\textrm{Re}}}( \omega \varepsilon )}{d \omega } \Big | _{\omega = \Omega }\). But, this will not lend for an appropriate interpretation as the Hamiltonian of quantum harmonic oscillator with the electric and magnetic fields are the canonical variables, because the magnetic contribution will be missing, i.e., as the electric potential energy of the i-th mode is not constant in time it cannot account for the total energy of the system, that must be conserved. The energetic balance tells us that in order for the total energy to be conserved, the electric potential energy \(U_i\) must be continually transforming to some other form, say \(K_i\), and vice-versa. From Eq. (4), we identify \(K_i=\hbar \Omega A _{i} ^{2} \cos ^{2} ( \Omega \,t)\), which we can physically understand as a kinetic energy associated with the currents flowing in the TI’s surface driven by the i-th mode. Having done so, we can indeed, carry out a canonical quantization programme by considering a time-dependent field amplitude \(\mathscr {A} _{i} (t) = A _{i} \sin (\Omega \,t)\). Thus the Hamiltonian of the confined field modes is given by \(H _{i} = (\hbar /\Omega )\,\dot{\mathscr {A}} _{i} ^{2} + \Omega ^{2} \mathscr {A} _{i} ^{2}\). The two variables \(\mathscr {A}_{i}\) and \(\dot{\mathscr {A}}_{i}\) form a pair of canonical conjugate variables that can be promoted to quantum operators as \(\mathscr {A}_{i}\rightarrow \hat{x}_{i}\) and \(2\hbar \dot{\mathscr {A}}_{i}/\Omega \rightarrow \hat{p} _{i}\), that satisfy the commutation relations \(\left[ \hat{x}_{i},\,\hat{p}_{j}\right] =i\delta _{ij}\hbar \). Introducing the creation and annihilation bosonic operators \({\hat{a}} _{i} = {\hat{x}} _{i} + (i/2 \hbar ) {\hat{p}} _{i}\,\,\, \text{and} \,\,\,{\hat{a}} _{i} ^{\dagger } = {\hat{x}} _{i} – (i/2 \hbar ) {\hat{p}} _{i}\)42, and using the fact that the modes are orthogonal, we obtain the quantum Hamiltonian that describes the TI surface modes
$$\begin{aligned} \hat{H}_{\textrm{TI}} = \hbar \, \Omega \! \sum _{i = x,y,z} \left( \hat{a} ^{\dagger } _{i} \hat{a} _{i} + 1/2 \right). \end{aligned}$$
(5)
The above treatment also leads to an expression for the quantized electric field. In fact, one can show that \(\Lambda _{i} = (N/2)\,(\hat{a}_{i}+\hat{a}_{i}^{\dag })/\sin (\Omega \,t)\). Therefore, the quantized electric field in the steady-state condition, Eq. (3), reads
$$\begin{aligned} \varvec{\hat{E}}_{\textrm{TI}}(\textbf{r},t) = \sqrt{\frac{\hbar \Omega }{2\varepsilon _{0}V_{m}}} \sum _{i=x,y,z}(\hat{a}_{i}+\hat{a}_{i}^{\dag })\, \textbf{Y}_{i}(\textbf{r}),\,\,\, V_{m} \approx \frac{4\pi R^{3}}{3}\, \frac{4\,\varepsilon _{2} + 2}{2\,\varepsilon _{2} + 2}, \end{aligned}$$
(6)
where \(\textbf{Y}_{i}(\textbf{r}) = \textbf{G}_{i}(\textbf{r})/\mathscr {U}_{0}\) is a re-scaled function and \(V_{m}\) is the mode-volume defined as the ratio between the total energy to the energy density inside the TI, i. e., \(V_{m} = [\int \,d ^{3} \textbf{r}\,\vert \textbf{G} _{i} (\textbf{r}) \vert ^{2} \, d\,\text{ Re }( \omega \varepsilon )/d \omega \vert _{\omega = \Omega }]\,/\, \mathscr {U} _{0}\), with \(\mathscr {U} _{0} = \vert \textbf{G}_{i}(0)\vert ^{2}\, d\,\text{ Re }(\omega \varepsilon _{1})/ d\omega \vert _{\omega =\Omega }\). It is worth to mention that the quantized electric field, Eq. (6), depends on the electric field per photon \(\text{ E}_{0} = \sqrt{\hbar \Omega /2\varepsilon _{0}V_{m}}\), but not on the strength of the impulse magnetic field. Having obtained the quantized electric field, we proceed to deduce the Hamiltonian of TI-QD interaction. When the distance between the TI and the QD is larger than the radius of the TI, the dipolar approximation provides a reasonable result for the interaction strength given by \(\hat{H}_{\textrm{int}} = – \hat{\textbf{p}}\cdot \hat{\textbf{E}}_{\textrm{TI}}\)28,29, with \(\hat{\textbf{p}}\) the dipole operator and \(\hat{\textbf{E}}_{\textrm{TI}}\) the quantized electric field in Eq. (6). In this paper, we consider a spherically symmetric QD, therefore, the matrix elements of the dipole operator, \(\hat{\textbf{p}}_{\textrm{nm}} = \langle n|\hat{\textbf{p}}|m\rangle \), point along the x, y or z axis. In this way, \(\hat{H}_{\textrm{int}}\) couples field and dipole operators pointing along the same direction, i. e., the dipole is excited only in one specific direction and couples to one of the TI bosonic surface modes. Applying the two-level approximation, the dipole operator can be written as \(\hat{\textbf{p}} = d (\hat{\sigma }^{+} + \hat{\sigma }^{-})\hat{\textbf{e}}_{i=x,y,z}\), where d is the dipole moment of the transition and \(\hat{\sigma }^{+}\) (\(\hat{\sigma }^{-}\)) is the Pauli raising (lowering) operator. In brief, we treat the dipole and the TI as a two level-system interacting with a single bosonic mode whose field points in the longitudinal or transverse direction. Thus, the interaction Hamiltonian takes the form
$$\begin{aligned} \hat{H}_{\textrm{int}} = \hbar g(r) (\hat{\sigma }^{+}\hat{a} + \hat{\sigma }^{-}\hat{a}^{\dag }), \end{aligned}$$
(7)
where we applied the rotating wave approximation leaving only the energy-conservative terms. It is worth to mention that the coupling strength g(r) depends on whether the TI’s (electric) field points parallel to the dipole (which we call longitudinal coupling, LC), or transverse to it (transverse coupling, TC). Explicitly, the coupling strength reads
$$\begin{aligned} g(r) = \left\{ \begin{array}{l} +2 \, \frac{d}{\hbar } \sqrt{\frac{\hbar \Omega }{2 \varepsilon _{0} V _{m} \mathscr {U} _{0}}} \frac{R ^{3}}{r ^{3}} \\ -1 \, \frac{d}{\hbar } \sqrt{\frac{\hbar \Omega }{2 \varepsilon _{0} V _{m} \mathscr {U} _{0}}} \frac{R ^{3}}{r ^{3}} \end{array} \right. \begin{array}{l} \text{ LC }, \\ \text{ TC }. \end{array} \end{aligned}$$
(8)
We observe that as the LC is twice as strong as the TC, it should be a better candidate for experimental detection than TC. All in all the Hamiltonian describing the TI-QD closed system is \(\hat{H} = \hat{H}_{\textrm{TI}} + \hat{H}_{\textrm{dip}} + \hat{H}_{\textrm{int}}\), where \(\hat{H}_{\textrm{dip}} = \hbar \omega _{a}\hat{\sigma }^{+}\hat{\sigma }^{-}\) is the dipole Hamiltonian with \(\omega _{a}\) the resonant frequency of the dipole. We also incorporate the interaction between the TI-QD system and the external field through the Hamiltonian40
$$\begin{aligned} \hat{H}_{\textrm{exc}} = i\hbar \,\sqrt{k}\, (\hat{a}^{\dag }\varepsilon _{d}\,e^{-i\omega t} – \hat{a}\,\varepsilon _{d}^{*} e^{i\omega t}) + i \hbar \, (\hat{\sigma }^{+}\,\Omega _{R}\,e^{-i\omega t} – \hat{\sigma }^{-}\,\Omega _{R}^{*}\,e^{i\omega t}), \end{aligned}$$
(9)
with k the total decay rate of the TI due to Ohmic losses to the environment and to its scattering into free space, \(\varepsilon _{d}\) the amplitude of the electric field induced on the TIs surface driven by the external field, and \(\Omega _{R}= i E_{0}\,d/2\hbar \) the Rabi frequency. In order to eliminate the terms that oscillate too fast in Eq. (9), we apply an unitary transformation based on the well known Baker–Campbell–Hausdorff formula43, then we obtain the total Hamiltonian of the system
$$\begin{aligned} \hat{H} _{{\textrm{S}}}{} & {} = \hat{H} _{{\textrm{TI}}} + \hat{H} _{{\textrm{dip}}} + \hat{H}_{{\textrm{int}}} + \hat{H}_{{\textrm{exc}}} = \hbar \Delta _{\textrm{TI}}\hat{a}^{\dag }\hat{a} +\hbar \Delta _{\textrm{dip}}\hat{\sigma }^{+}\hat{\sigma }^{-} +\hbar g(r)(\hat{\sigma }^{+}\hat{a}+\hat{a}^{\dag }\hat{\sigma }^{-})\nonumber \\{} & {} \quad + i\hbar (\sqrt{k}\varepsilon _{d} \hat{a}^{\dag }-\sqrt{k}\varepsilon _{d}^{*}\hat{a} +\Omega _{R}\hat{\sigma }^{+}-\Omega _{R}^{*}\hat{\sigma }^{-}), \end{aligned}$$
(10)
where \(\Delta _{\textrm{TI}} = \Omega -\omega \) and \(\Delta _{\textrm{dip}} = \omega _{a} – \omega \) are the detunings between the TI and dipole with the external field.
Density matrix formalism: from Lindblad’s master equation to entanglement
Now we deal with energy losses from the hybrid to the environment. In the theory of open quantum systems44 in which a subsystem interacts with the environment, irreversible evolution due to e.g., the spontaneous emission from an atomic excited level, or due to radiation and dampings, is inevitable. The irreversibility is manifest as this interaction is lost in the environment and cannot be retrieved, which is sometimes referred to as a Markovian (or memory-less) environment. However, such irreversible evolution can still be described by a master equation that generalises the Liouville equation for the density matrix operator. This equation is known as Lindblad’s master equation45,46, which has been applied in the study of systems consisting of metallic nanoparticles, quantum dots, and microcavities16,40,47. On the other hand, formulating the dynamic evolution in terms of the density matrix will prove useful for studying entanglement. This formalism applies well for our concerns: the hybrid not only pours the TI’s Ohmic losses in the environment/reservoir exciting phonon reservoir modes, the QD also emits dipole radiation that is lost from the hybrid to the environment exciting radiative reservoir modes and the reservoir modes also interact with the EM field operator of the TI and with the QD-dipole operator. Thus, we will satisfactorily describe the dynamics of our open quantum system, duly accounting for losses and damping effects; also we use then such formalism to quantify the entanglement in our system. In our case, Lindblad’s master equations takes the form
$$\begin{aligned} \begin{aligned} \frac{d\hat{\rho }}{dt}&= -\frac{i}{\hbar }[\hat{H}_{S}, \hat{\rho }] + \hat{\mathscr {L}}_{{\textrm{TI}}} + \hat{\mathscr {L}}_{{\textrm{QD}}},\\ \hat{\mathscr {L}}_{{\textrm{TI}}}&= -\frac{k}{2} (\hat{a}^{\dag }\hat{a}\hat{\rho } + \hat{\rho } \hat{a}^{\dag }\hat{a} – 2\hat{a}\hat{\rho }\hat{a}^{\dag }),\\ \hat{\mathscr {L}}_{{\textrm{QD}}}&= -\frac{\gamma _{s}}{2} (\hat{\sigma }^{+}\hat{\sigma }^{-}\hat{\rho } + \hat{\rho }\hat{\sigma }^{+}\hat{\sigma }^{-} – 2\hat{\sigma }^{-}\hat{\rho }\hat{\sigma }^{+}) + \frac{\gamma _{d}}{2} (\hat{\sigma }^{+}\hat{\sigma }^{-}\hat{\rho } – \hat{\rho }\hat{\sigma }^{+}\hat{\sigma }^{-} + \hat{\sigma }^{+}\hat{\sigma }^{-}\hat{\rho }\hat{\sigma }^{+} \hat{\sigma }^{-}-\hat{\rho }), \end{aligned} \end{aligned}$$
(11)
where \(\hat{\mathscr {L}}_{{\textrm{TI}}}\) and \(\hat{\mathscr {L}}_{{\textrm{QD}}}\) are the Lindblad operators of the TI and QD, with \(\gamma _{s}\) and \(\gamma _{d}\) the spontaneous emission rate and dipole dephasing rate of the QD, respectively, and k was defined as the total decay rate of the TI, which includes the damping parameter due to Ohmic losses \(\gamma _{0}\) and the scattering rate into free space \(\gamma _{r}\). The dynamics of the system is essentially described by the optical Bloch equations (OBEs), which correspond to equations of motion of the density matrix elements. For it, we label the base ket of the TI-QD system as \(|\beta \, ; m \rangle \), where \(\beta =G, X\) correspond to the ground (G) and excited (X) states of the the dipole respectively, and \(m=0,1,2,\dots \) correspond to the states of the TI bosonic surface modes.
We quantify the entanglement of the system using the Peres criterion, according to which if the state of a bipartite system is separable, then all the eigenvalues of its partial transpose are positive48. In our case, as the non-zero density matrix elements are given by: \(\rho _{Xm, Xm},\rho _{Gm+1,Gn+1},\rho _{Gm+1,Xm},\) and \(\rho _{Xm,Gm+1}\), the non-zero density matrix elements of the partial transpose with respect to the excitonic subsystem, i.e. the dipole, are
$$\begin{aligned} \begin{aligned} \rho _{Gm,Gm}^{T}&= \rho _{Gm,Gm},\,\,\,\,\, \rho _{Gm+1,Gm+1}^{T} = \rho _{Gm+1,Gm+1},\\ \rho _{Xm+1,Gm}^{T}&= \rho _{Gm+1,Xm},\,\,\,\,\, \rho _{Gm,Xm+1}^{T} = \rho _{Xm,Gm+1}. \end{aligned} \end{aligned}$$
(12)
The partial transpose of the density matrix in the basis \(\{|X;0\rangle, |G;0\rangle,|X;1\rangle,|G;1\rangle, |X;2\rangle \ldots |G;m\rangle,|X;m+1\rangle,|G;m+1\rangle \}\) applies on the diagonal elements which form \(1\times 1\) and \(2\times 2\) blocks:
$$\begin{aligned} \rho ^{T}= \left( \begin{array}{cccccc} \rho _{X0,X0} &{} &{} &{} &{} &{} \\ &{} \ddots {} &{} &{} &{} &{} \\ &{} &{}\rho _{Gm,Gm} &{}\rho _{Xm,Gm+1} &{} &{} \\ &{} &{}\rho _{Gm+1,Xm}&{}\rho _{Xm+1,Xm+1}&{} &{} \\ &{} &{} &{} &{} \ddots {} &{} \\ &{} &{} &{} &{} &{}\rho _{Gm+1,Gm+1} \end{array} \right). \end{aligned}$$
(13)
The eigenvalues corresponding to the left upper and right lower blocks of the above matrix, \(\rho _{X0,X0}\) and \(\rho _{Gm+1,Gm+1}\), are always positive or zero. On the other hand, the eigenvalues corresponding to the \(2\times 2\) blocks, which we called A, can be determined using the formula \(\lambda _{\pm } = \text{ Tr }\{A\}\pm \sqrt{\text{ Tr }\{A\}^{2}-4\,\text{ det }\{A\}}\), providing
$$\begin{aligned} \widetilde{\lambda }_{\pm } = \sqrt{(\rho _{Gm,Gm})^{2}+(\rho _{Xm+1,Xm+1})^{2}-2\rho _{Gm,Gm}\rho _{Xm+1,Xm+1}+4|\rho _{Xm,Gm+1}|^{2}}, \end{aligned}$$
(14)
with \(\widetilde{\lambda }_{\pm } = \lambda _{\pm }-(\rho _{Gm,Gm}+\rho _{Xm+1,Xm+1})\). From Eq. (14) we have a negative eigenvalue and therefore an entangled state. Also, Eq. (14) implies the condition \(|\rho _{Xm,Gm+1}|-\sqrt{\rho _{Gm,Gm}\rho _{Xm+1,Xm+1}}>0\). Thus, entanglement can be quantified by the formula
$$\begin{aligned} E(\rho ) = \sum _{m=0, 1, 2\ldots } \text{ max }\big \{0,|\rho _{Xm,Gm+1}|-\sqrt{\rho _{Gm,Gm}\rho _{Xm+1,Xm+1}}\big \}. \end{aligned}$$
(15)
Hence, truncating the infinite tower of states of the TI bosonic surface modes to \(m = 0,1\) (see Fig. 1) and naming the states of the dipole as \(G = 0\) and \(X = 1\), we get the effective OBEs of the system (Eq. 22). Therefore, in our model, the measure of TI-QD entanglement is given by the maximum value between zero and the absolute value of the density matrix element \(\rho _{1001}\), \(E(\rho ) = \text{ max }\big \{0,|\rho _{1001}|\big \}\), namely the density matrix between the hybrid states \(\langle X;0 | \rho | G; 1 \rangle \). The component \(\rho _{1001}\) is determined by solving the OBEs, a system of differential equations that couple it to the other components of the density matrix, with coefficients that depend on the parameters of the system (see “Methods” section). Graphically, from the right panel of Fig. 1, we see that entanglement \(E(\rho )\) is intimately connected with the topological properties of the TI as ultimately the coupling strength g(r) is a direct signal of the TI’s topological EM response. Our model does not hinge on details of numerical solutions for its description. In that respect, the information of the band topology of the TI sphere is extracted from how sensitive this entanglement is as a function of \(\tilde{\alpha }\).
Now we apply our results to a realistic TI-QD hybrid, which is carried out by using appropriate values of the parameters in the effective OBEs (Eq. 22). We assume a CdSe QD interacting with a spherical TI nanoparticle made of TlBiSe\(_{2}\). For such TI the parameters are found to be \(\mu =1\) and \(\varepsilon _{1}(0) = 1 + (\omega _{e}/\omega _{R}) \sim 4\)28. Further, we take an energy of \(\hbar \Omega = 2.2\) eV, a damping parameter due to Ohmic losses \(\gamma _{0} = 0.2\) eV and a scattering rate into free-space modes \(\gamma _{r} = 2.3\times 10^{-4}\) eV, hence the total decay rate of the TI is \(k = \gamma _{0} + \gamma _{r} \approx 0.2\) eV. We choose the TI nanoparticle radius to be \(R = 4\) nm, which is embedded in a polymer layer of poly(methyl methacrylate) with permittivity \(\varepsilon _{2} = 1.5\)29. We also consider a spherical CdSe QD with a size of 4 nm, a resonance energy \(\hbar \omega _{a} = 2.0\) eV, a spontaneous emission rate \(\gamma _{s} = 6.5 \times 10^{-8}\) eV and a dipole dephasing rate \(\gamma _{d} = 4.9 \times 10^{-6}\) eV. We set a transition dipole moment \(d = 6.4\times 10^{-28}\) Cm49. The external laser field was chosen to have a wavelength of \(\lambda = 2\pi c/\omega = 550\) nm, then the detunings between the TI and QD with such external field are \(\Delta _{\textrm{TI}} = 1.87\) eV and \(\Delta _{\textrm{dip}} = 1.84\) eV, respectively. Finally, we suppose that the TI driving field amplitude \(\varepsilon _{d}\) approaches the rate of one photon per modified lifetime of the QD, i.e. \(|\varepsilon _{d}|^{2} = \Gamma \), where \(\Gamma = \gamma _{s} + [4g^{2} k/(k^{2}+4(\Omega -\omega _{a})^{2})]\) is defined as the modified spontaneous emission rate40.
Figure 2 (up) shows the entanglement of the system as a function of the coupling strength parameter (g) and time (t) in longitudinal coupling (LC). We choose three different values of \(\tilde{\alpha }\): (a) \(\tilde{\alpha } = 1/137\), (b) \(\tilde{\alpha } = 3/137\), and (c) \(\tilde{\alpha } = 7/137\). In Fig. 2a, we observe an entanglement pattern initially with an oscillatory dynamic that tends to be constant, mainly in the interval \(g=[1.0-2.0]\) eV. In Fig. 2b, entanglement achieves a maximum value of \(E(\rho ) = 0.3\) in the interval \(g=[1.2-2.0]\) eV at 4 ns, then decreases gradually until \(E(\rho ) = 0.2\) at 50 ns. Figure 2c shows that entanglement has initially a maximum value of \(E(\rho )=0.05\) for nearly vanishing coupling strength, which then decreases constantly in time, also we notice that for \(g \sim 1.9\) the oscillation of entanglement stops at \(\sim \) 18 ns to the faintly resume at \(\sim \) 26 ns, which could be considered as a reminiscent of a collapse and revival of entanglement. Finally, it is remarkable that for LC, at \(\tilde{\alpha } = [1-3]/137\), above \(g \sim 1.5\) entanglement seems more “persistent”, namely exhibiting an almost steady value close to its maximum. Figure 2 (bottom) shows the entanglement of the system as a function of the coupling strength parameter (g) and time (t) in transverse coupling (TC). Similarly as above, we set the same values for \(\tilde{\alpha }\): (d) \(\tilde{\alpha } = 1/137\), (e) \(\tilde{\alpha } = 3/137\), and (f) \(\tilde{\alpha } = 7/137\). We observe that, as a function of \(\tilde{\alpha }\), for both couplings LC and TC the maximum value of entanglement decreases monotonically. For TC it is actually absolutely monotonically decreasing in the shown range, while for LC in the \(\tilde{\alpha } = [1 – 3]/137\) range it remains constant. Their total decrement is, however, similar of \(\sim 1\) order of magnitude with respect to their maximum values for \(\tilde{\alpha } = [1 – 7]/137\).

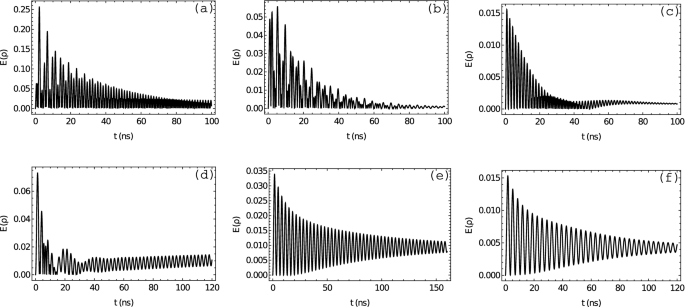

Finally, Fig. 3 shows TI-QD entanglement as a function of time for LC (up) and TC (bottom) with (a, d) \(\tilde{\alpha }=1/137\), (b, e) \(\tilde{\alpha }=3/137\), and (c, f) \(\tilde{\alpha }=7/137\). In other words, Fig. 3 correspond to cuts in the plane \(E(\rho )\) vs time of the Density Plots in Fig. 2 for fixed values of the coupling strength g: (a) \(g = 0.5\) eV, (b) \(g = 0.8\) eV, (c) \(g = 1.8\) eV, (d) \(g = -0.1\) eV, (e) \(g = -0.05\) eV, and (f) \(g = -0.05\) eV. Here it is remarkable that, despite entanglement has a maximum value higher for LC (\(E(\rho )=0.25\)) than for TC (\(E(\rho ) \approx 0.06\)), it decreases to zero for LC; nevertheless for TC, entanglement decreases but achieves a non-zero constant value. We have applied also the above analysis to other TI samples, such as Bi\(_2\)Te\(_3\) and Bi\(_2\)Se\(_3\). For these materials the entanglement pattern exhibits a similar behaviour than for TlBiSe\(_{2}\), as depicted in Figs. 2 and 3, showing that our result is not a peculiarity of the particular TI material chosen. A notorious difference is, however, the frequency of the oscillations, which is controlled by the optical properties of the material. The TIs Bi\(_2\)Te\(_3\) and Bi\(_2\)Se\(_3\) have larger static permittivities50,51 than TlBiSe\(_{2}\), and hence the frequency of the oscillations in the entanglement pattern are shorter.
